Performce

Passenger available

6 people

Max Speed

25-40 km/h

Max Travelling Range

80-100 km

Climbing Ability

25%

Turning Radius

3.5m

Dimension

Overall Dimension

4000*1340*1950 mm

Ground Clearance

170 mm

Wheelbase

3170 mm

Front & Rear Wheel Tread

960 mm / 1000 mm

Wheels

23*10-14 tire with  Al alloy rim

Eelecric and Electronic Components

Motor

48V 5KW, AC

Controler

48V 350A

Battery

8V 150Ah Lead-acid maintenance-free, 6 pcs

Charger type

48V 20A

Charging Time

8-10 h

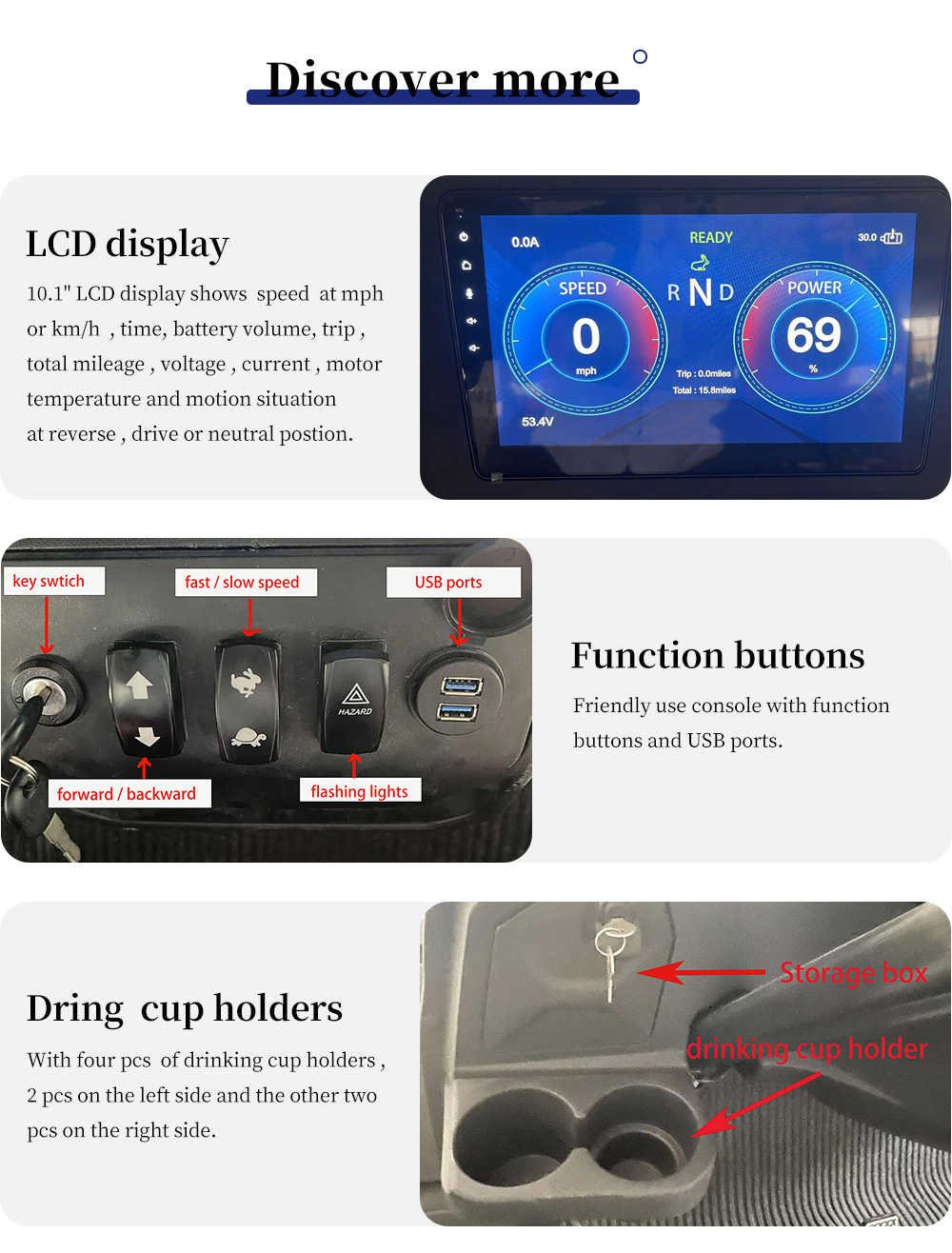

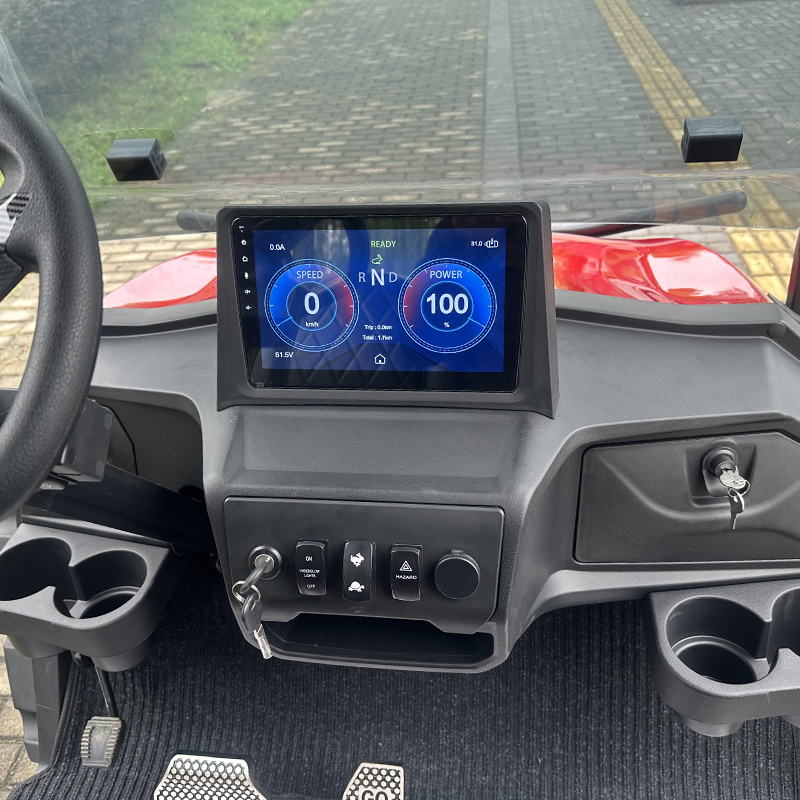

Display

10.1" touch LCD screen

Lights and horn

LED Headlights,turning lights, driving lights, and braking lights

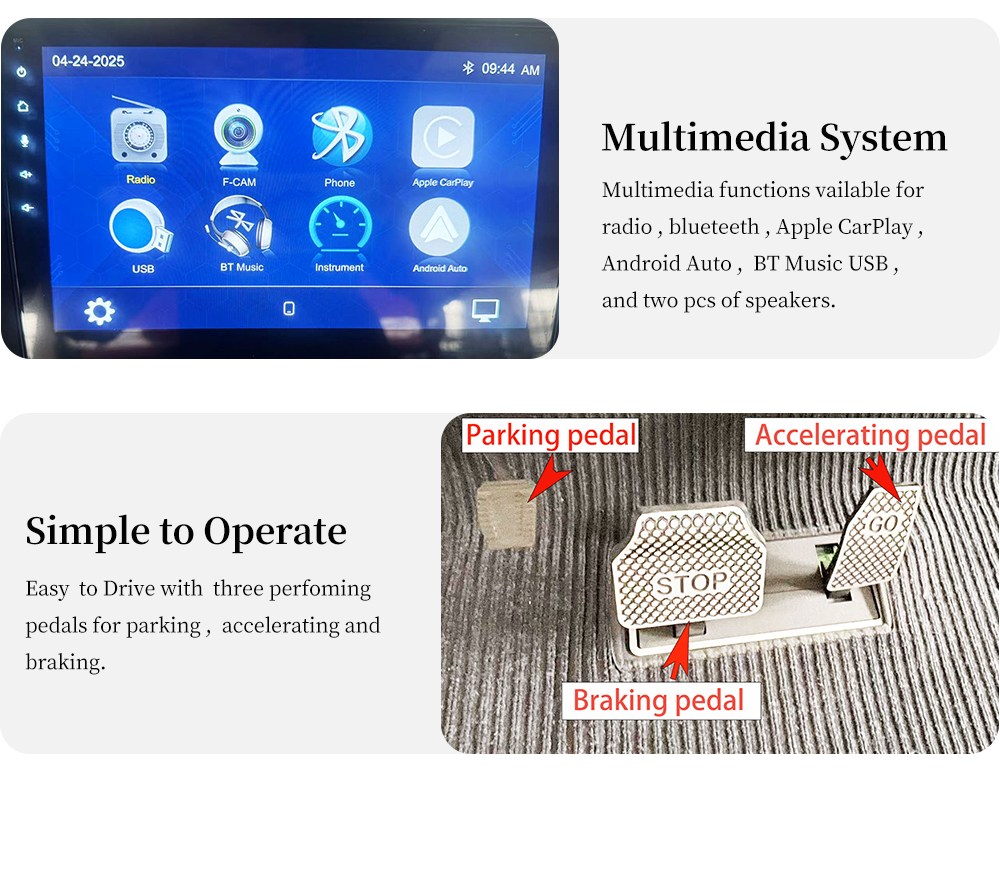

Accelerator

Stepless speed change

QTY of USB port

2 pcs

QTY of Speaker

2 pcs

Motion Control

Front & Rear Axle and Suspension

The MacPherson independent Suspension System+spring

Brake system

Four wheel hydraulic brake

Steering system

rack and pinion steering system

Other Components

Body material

steel frame + PP plastic

Roof material

ABS

Windshield

Organic glass, hinged

Seats

Luxury sofa seat with high rebound PU sponge

ice bucket

without

Weight

Net weight（without battery ）

490 kg

batteries weight

202 kg
