PRODUCT CATEGORY

JXG-X602

Specification

Performce

Passenger available

6 people

Max Speed

40 km/h

Max Travelling Range

80-100 km

Climbing Ability

25%

Turning Radius

4 m

Dimension

Overall Dimension

3650*1340*2050 mm

Ground Clearance

170 mm

Wheelbase

2440 mm

Front & Rear Wheel Tread

960 mm / 1000 mm

Wheels

23*10-14 tire with  Al alloy rim

Eelecric and Electronic Components

Motor

AC 48V,  5 KW

Controler

48V 350A

Battery

8V 150Ah Lead-acid maintenance-free, 6 pcs

Charger type

48V 20A

Charging Time

6-8 h

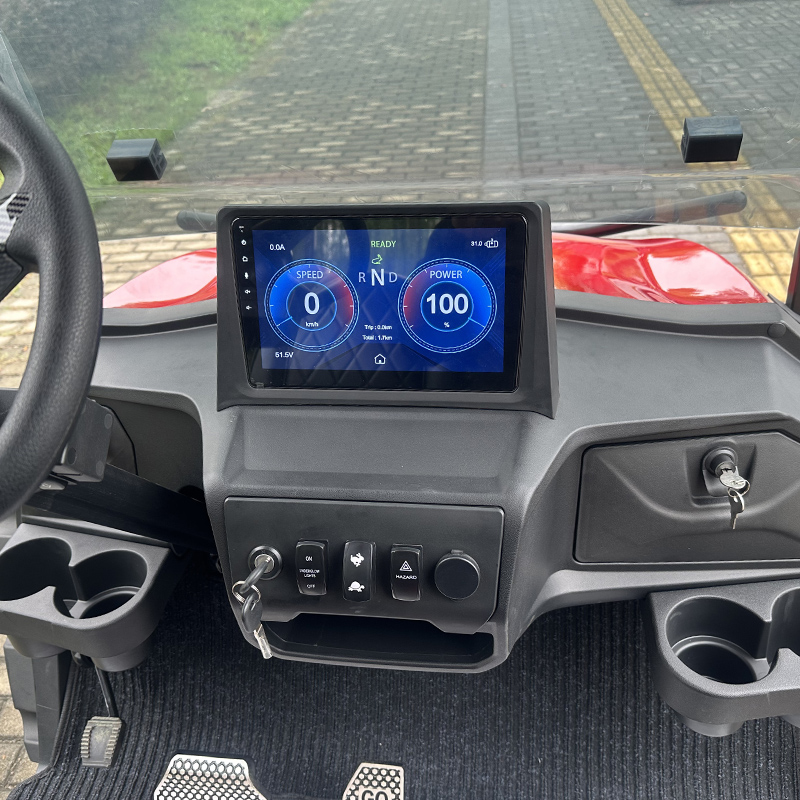

Display

10.1", LCD

Lights and horn

LED Headlights,turning lights, driving lights, and braking lights

Accelerator

Stepless speed change

QTY of USB port

2 pcs

QTY of Speaker

2 pcs

Motion Control

Front & Rear Axle and Suspension

independent Suspension

Brake system

front hydraulic disc brake and rear hydraulic disc brake

Steering system

rack and pinion steering system

Other Components

Body material

steel frame + PP plastic

Roof material

ABS plastic

Windshield

Organic glass, hinged

Seats

Luxury sofa seat with high rebound PU sponge

ice bucket

udner rear seat

Weight

Net weight(without battery )

521 kg

batteries weight

202 kg


Features :

1) Rear seat can be  flipped and turned it to flatbed for carring stuff

2) Key components are waterproof

3) Color for body and seats are opotional
